Reimyo
Impossible sound made possible!

Reimyo means miracle, and that's the name Harmonix has given to its growing lineup of cutting-edge sound equipment. The reimyo lineup truly lives up to its name. The lineup was designed through High-tech Fusion: that's where Harmonix collaborates with the world's finest specialized companies, combining the best technology in the world to create an unprecedented, and otherwise impossible, product line. As their name implies, these systems bring out natural sound in an almost miraculous way.

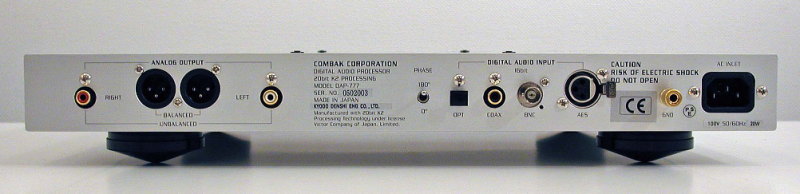

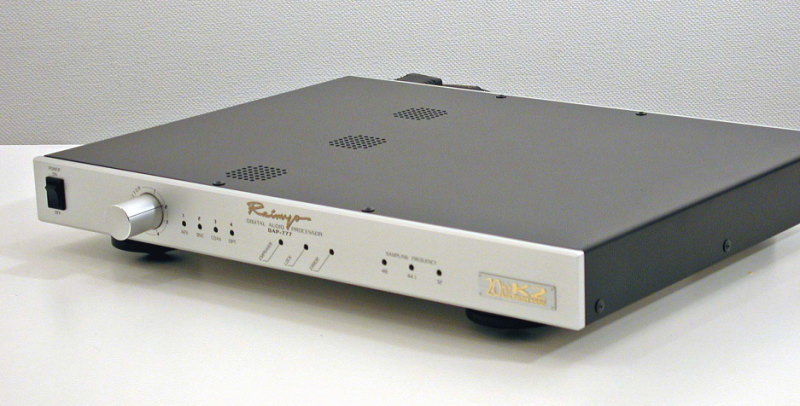

A high-purity digital-to-analog converter unparalleled in its class. Eliminates virtually all digital/analog interference and reduces noise to an unprecedented level. Special internal wiring permits ultra high-speed transmission at nearly zero distortion. Employs Japan Victor's 20bitK2 processing. Also includes AES, BNC, optical and coaxial digital inputs, and balanced and unbalanced outputs.  How DAP-777 works ››

Input Quantization: 16bit
Sampling Frequencies: 48kHz, 44.1kHz, 32kHz. Automatic Switching
Digital Inputs:
     1 x Coaxial (RCA)
     1 x Optical (TORX)
     1 x BNC
     1 x AES (XLR-3P) HOT: No.3
Input Impedance: 75Ω
Signal Processing: 20 bitK2 Processing IC (16→20 bit Convert).
Digital Filter: 20 bit 8-time Oversampling
Phase Inverter SW: 0゜-180゜on the back panel
D/A Converter IC: 20bit D/A Converter/ Multi-bit
Analogue Outputs:
     XLR Balance/4.90 Vrms
     RCA Unbalance/2.45 Vrms
Frequency Response: DC ～20kHz (±0.5dB)
Signal-to-Noise Ratio: Better than 117dB
Dynamic Range: Better than 100dB
Linearity: ±0.3dB (+10dBm ～ -90dBm) 1kHz IHF-A
THD: Better than 0.003% (30kHz LPF on)
Channel Separation: Better than 105dB (1kHz)
Channel: 2-channel Stereo
Unbalance Outputs: 2.45 Vrms/LOW IPM (+10dBm)
Balance: 4.90 Vrms/LOW IPM
Power Requirement: 117V/60Hz, 220-230V/60Hz
Power Consumption: 13.5W
Dimensions: 430(W) x 65.2(H) x 363(D)mm
Weight: 5.3kgs
Standard Accessory: X-DC 1.5m AC Power Cord
